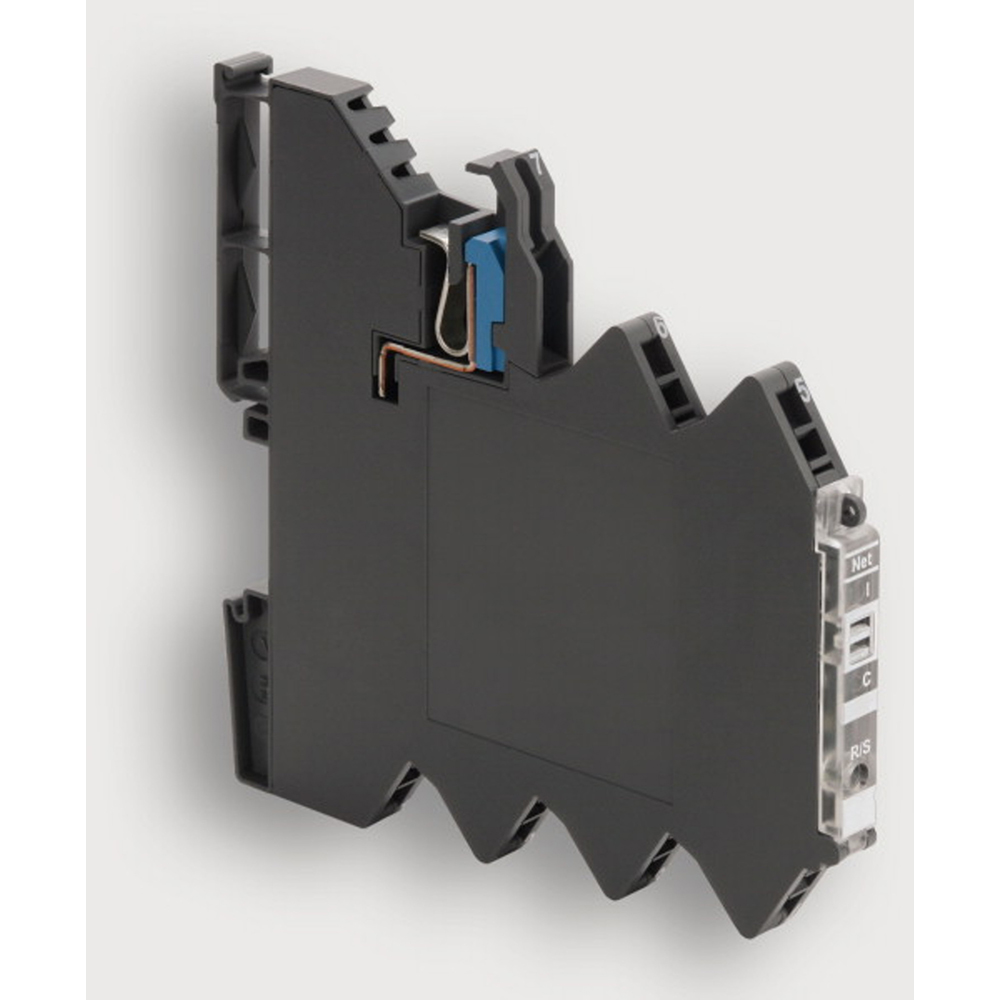

LUTZE Inc. 716410 Electronic Load Monitor, LOCC-BOX-NET, DC12/24VDC, 1-10A, 5 Characteristic
N.o de parte del MFR:
716410
Número de stock de RS:
72065963
USD 104.26
Este precio es para el público en general. El precio puede variar para los clientes registrados.
En stock - 1
Inventario adicional: 0
Plazo de entrega para inventario adicional: 10 Días
Cantidad disponible:
1
Cantidad en pedido: 0
LUTZE Inc. 716410 Electronic Load Monitor, LOCC-BOX-NET, DC12/24VDC, 1-10A, 5 Characteristic está disponible para comprar en incrementos de 1
Documentos
- Cumple con RoHS
Especificaciones del producto
Atributo del producto |
Valor del atributo |
|---|---|
| Alternate Mfr Part Number | LOCC-Box-Net 7-6410 |
| Approvals | UL 508 |
| Brand | LUTZE Inc. |
| Characteristic | 5 |
| Housing Material | Plastic |
| Manufacturer Part Number | 716410 |
| Operating Voltage Range | 10-30 VDC |
| Output Current | 10 A |
| Series | LOCC-BOX Series |
| Termination | Push-in |
| Type | Industrial |
| Warranty | 5 years |
Descripción general
LUTZE LOCC-Box is an innovative control circuit protection device utilizing state-of-the-art “Solid State Technology” for short circuit and overload situations in 12/24V DC control circuits. LOCC-Box’s technology eliminates the mechanical operation of a circuit breaker or the inefficiencies of a fuseFeatures:
●Safety first! When conventional circuit breakers and fuses are not reliable enough!
●Adjustable current range (1-10A)
●Adjustable characteristics: fast, medium, slow 1, slow 2, slow 3
●Output alarm signal at 90% of load setting
●Output trip alarm
●LED status indicator on/off/alarm
●Remote reset and remote on/off
●Independent of ambient temperature, no derating required
●UL Listed
